3LCD 12000 Lumen Outdoor Projectors Laser Projector For Building Projection

Brand Name : SMX

Model Number : MX-X12000U

Certification : ISO,CE

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T

Supply Ability : 10000pcs/Monthly

Delivery Time : 5-20days

Packaging Details : Carton/Flight Case

Product Name : Laser Projector

Birghtness : 12000 Lumen

Contrast : 3000000:1

Display Technology : 3LCD

Light Source : Laser

Len Shift : V: +50%，-10% / V: ±20%

Contact Now

3LCD 12000 Lumen Outdoor Projectors Laser Projector For Building Projection

Key Features & Benefits

1. Extreme 12,000 Lumen Brightness

Produces exceptionally bright and clear images even in well-lit rooms. Perfect for large screens and spaces with significant ambient light, ensuring your content is always visible and engaging.

2. Advanced Coreless Laser Light Source

20,000-Hour Light Source Life: The laser engine is designed to last up to 20,000 hours, providing years of service without the cost or hassle of lamp replacements.
Virtually Maintenance-Free: Unlike traditional lamp-based projectors, there are no lamps, filters, or phosphor wheels to replace. This significantly reduces the total cost of ownership (TCO).
Instant On/Off: Powers up to full brightness instantly and shuts down immediately, with no cool-down period required.

3. WUXGA Resolution

Benefit: With a native resolution of 1920x1200, it displays 30% more pixels than standard Full HD (1080p). This higher resolution is ideal for presenting detailed data, complex graphics, CAD drawings, and widescreen video content with exceptional clarity and sharpness.

4. Professional Installation Flexibility

Motorized Zoom, Focus, and Lens Shift: Allows for precise and remote image adjustment during installation, saving time and effort during setup and calibration.
4-Corner Adjustment: Easily corrects the image to fit irregular surfaces or screens.
Versatile Lens Options: Compatible with a range of optional interchangeable lenses (e.g., ultra-short throw, long throw) to fit any room layout and projection distance requirement.

5. Robust Connectivity and Control

Comprehensive Inputs: Includes dual HDMI inputs, DVI-D, VGA, and a network port for flexible source connectivity.
HDBaseT Compatible: Supports transmission of high-definition audio/video, control signals, and Ethernet over a single CAT cable up to 100 meters, simplifying installations.
Network Control: Built-in RJ-45 port for easy integration into centralized control systems (Crestron, AMX, etc.) and remote monitoring/management.

6. Reliable and Durable Design

24/7 Operation Ready: Engineered for continuous operation, making it suitable for digital signage and museum applications.
Dust-Resistant Design: Protects the internal optics for consistent performance over time, even in less-than-ideal environments.

3LCD 12000 Lumen Outdoor Projectors Laser Projector For Building Projection

Specification

Model No.	MX-X12000U
Brightness (Ansi Lumens)	12000 lumen
Light source	Laser
Display Panel	3x0.76"
Display Technology	Liquid Crystal Display
Native Resolution	WUXGA (1920 x 1200)
Light source Lifetime	Normal mode: 20000hrs ECO mode: 20000hrs
Projection Lens	Zoom Lens
Zoom/Focus	Manual(Standard Len)
Throw Ratio(16:10)	1.46-2.95
Contrast Ratio(Min)	3,000,000:1
Noise(dB)	Normal(90%): 35dB ECO1(75%): 32dB ECO2(45%): 32dB
Aspect Ratio	Native:16:10 Compatible: 4:3/16:9/normal
Input/Output Ports	VGA (1), HDMI 1.4(IN) (2), USB-A (1), USB-B (1), RJ45 (1), DVI-D (1), HD BaseT (1), HD-SDI(3G-SDI) (Optional)
Control	RS232 (1), RJ45 (1), USB-B (1), Wired Remote(IN/OUT) (1 each)
Keystone Correction	V: ±30° H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction
OSD Languages	26 languages including English, German, French, Spanish, Japanese, Chinese, and more
LAN Control	RoomView (Crestron), AMX Discovery, PJ Link
Display Resolution	VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz
Special Features	360° Omni bearing installation, Edge Blending
Dimensions (WxHxD mm)	600218503
Net Weight	~25kg
Accessories	Power cord (3m, Black), Remote, HDMI Cable

Application

Product Tags:

3LCD 12000 Lumen Laser Projector

Flexible 12000 Lumen Laser Projector

Space Saving 3d laser mapping projector

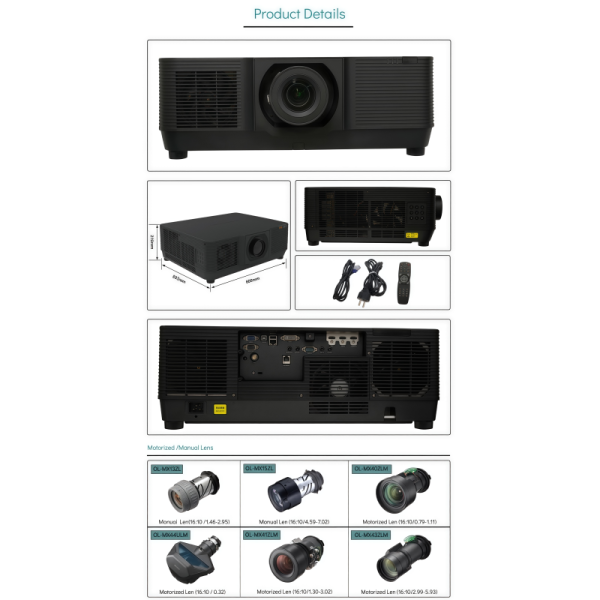

3LCD 12000 Lumen Outdoor Projectors Laser Projector For Building Projection Images
